Radeon X1300 socket?

[Nigel Molesworth]

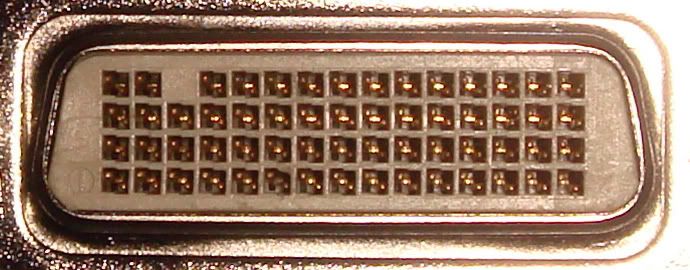

I've just bought a monitor with a digital input. However, the output socket
on my Dell Vostro 200S (a Radeon X1300) is not the same as the supplied
lead, it looks like this:

<http://i77.photobucket.com/albums/j54/nigelmercier/Misc/X1300.jpg>

What is this socket called?



[Tom Lake]

I've just bought a monitor with a digital input. However, the output
socket
on my Dell Vostro 200S (a Radeon X1300) is not the same as the supplied
lead, it looks like this:

<http://i77.photobucket.com/albums/j54/nigelmercier/Misc/X1300.jpg>

What is this socket called?

It's called DMS-59. You'll need a DMS-59 to DVI adapter cable.

http://en.wikipedia.org/wiki/DMS-59

Tom Lake



[Nigel Molesworth]

It's called DMS-59. You'll need a DMS-59 to DVI adapter cable.

Thanks Tom.

And now my brain has switched back on, I've found one in the Dell box!
