HP ProBook 5320m 13.3 NB with Intel Core i3-350M Review

windwithme

windwithme

Joined
Dec 1, 2008
Messages
730
Reaction score
47

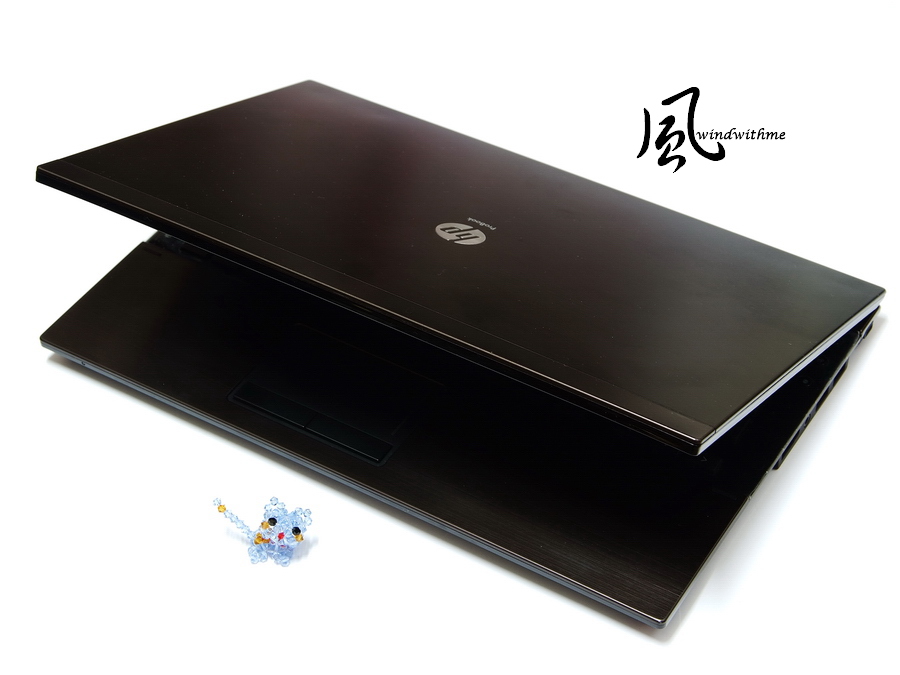

HP ProBook 5320m


32.8 X 22.10 X 2.35 cm

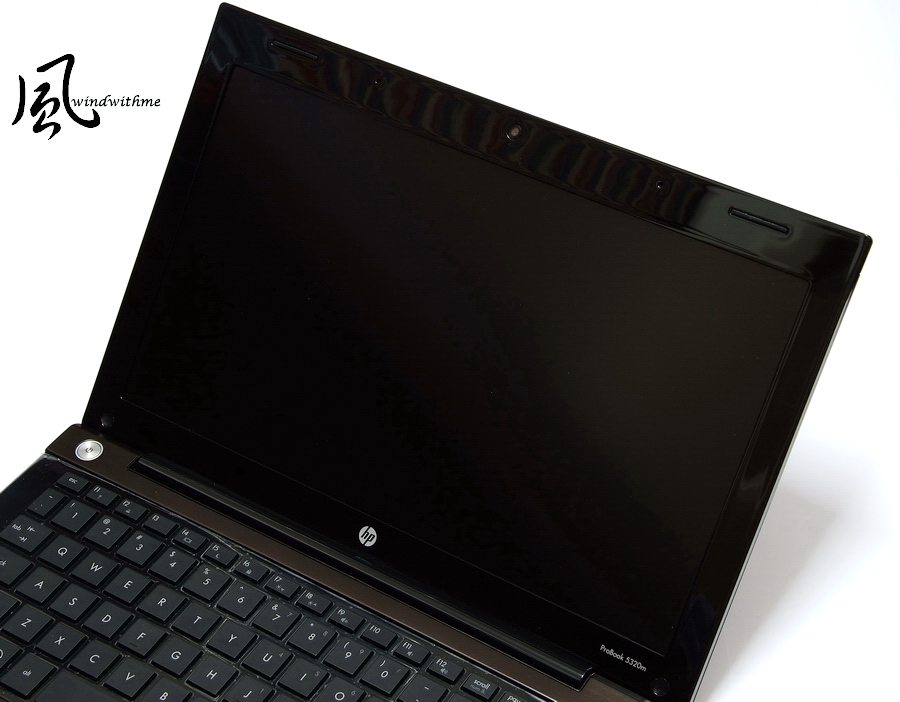

13.3” matte monitor, the resolution is 1366X768. The open degree is 140.
Integrated 2 MP webcam with fixed-focused lens.

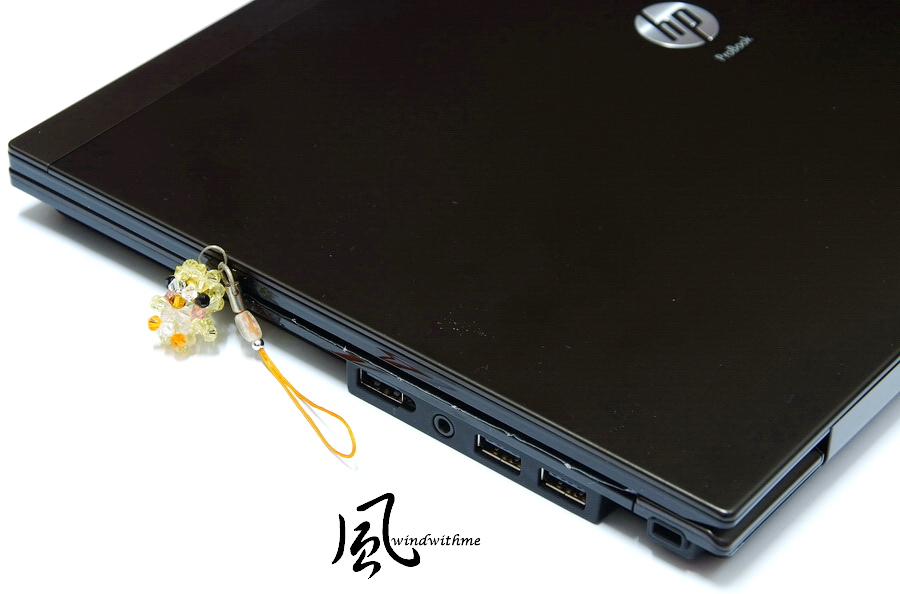

Left side
SD\1 X USB 2.0\1 X Mic in&Line out\2 X USB 2.0\anti-thief lock


Left side
Power in\thermal holes\DisplayPort\RJ45 LAN\D-SUB

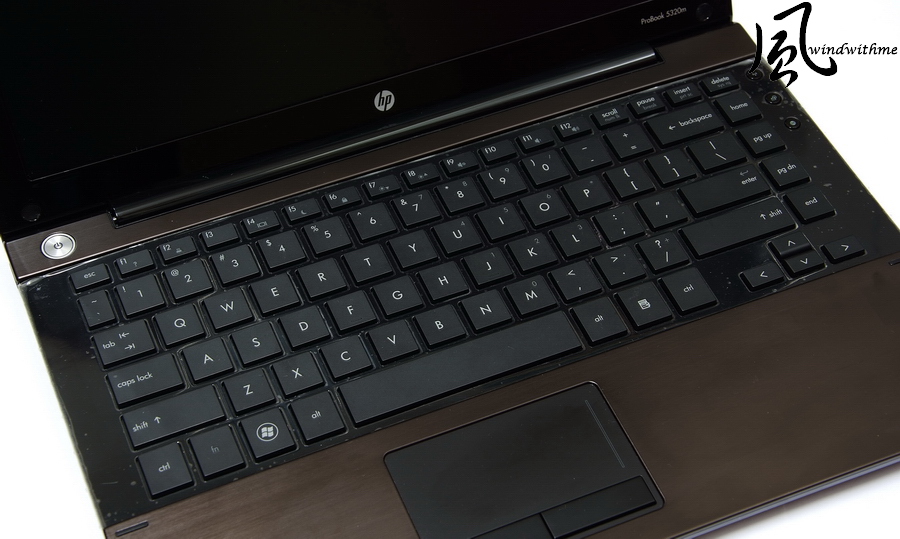

Full-sized spill-resistant keyboard with HP DuraKeys

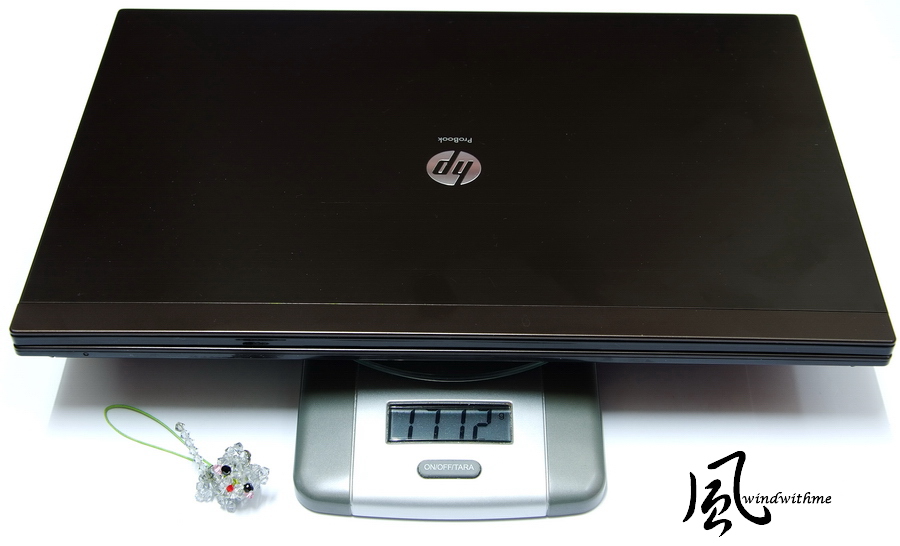

4 Cell battery => 1712g


HP ProBook 5320m uses Intel latest Calpella structure.
CPU is Intel Core i3-350M. The clock is 133 X 16 => 2.26GHz, L3 3MB, dual core and supports HT technology.
The chipset is HM57. Comparing to GM45, I believe the performance will be much better.

Performance test
OS is Windows7 Ultimate 64Bit

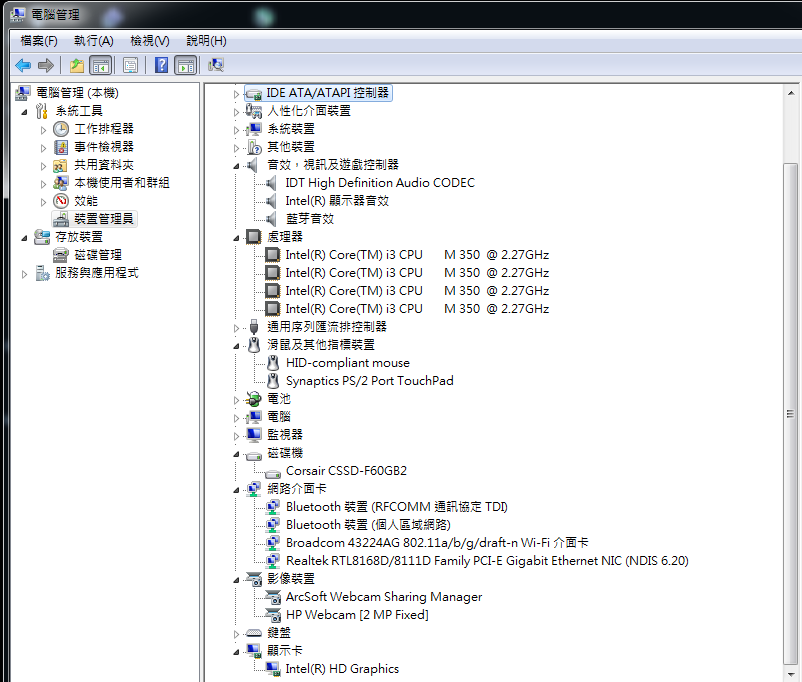

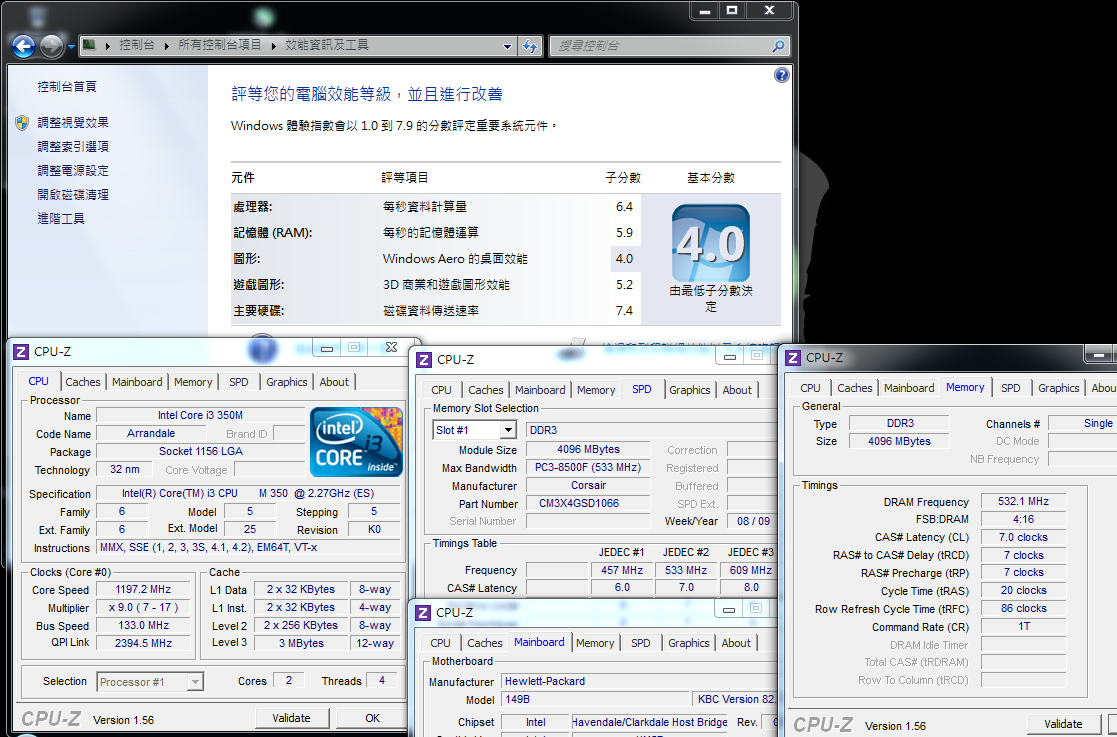

Hardware info in Device Manager


Windows7 system performance


CPU performance test

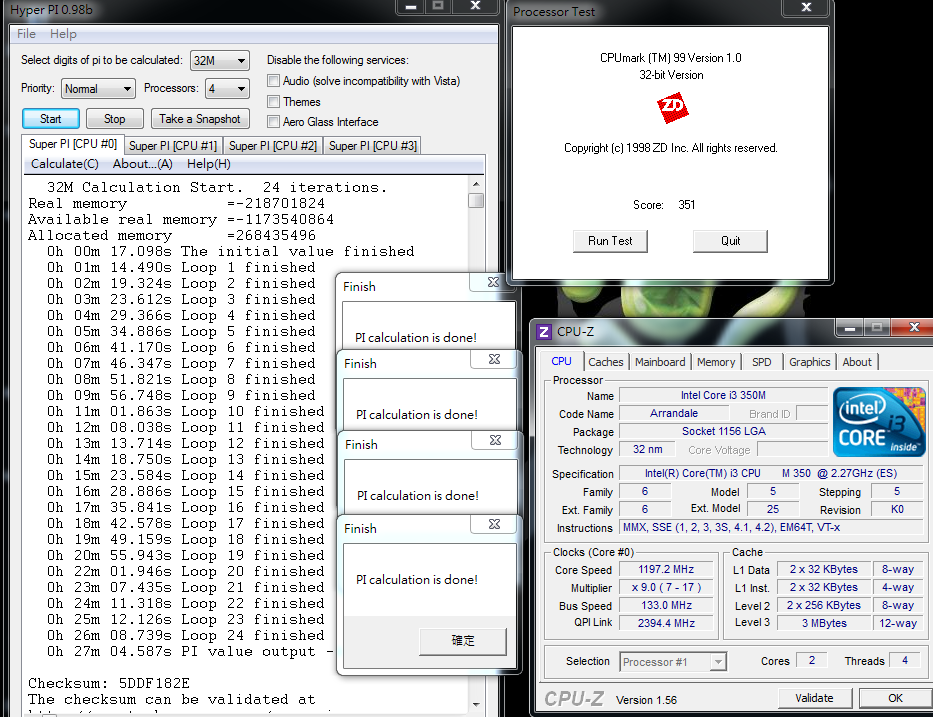

Super PI 32M => 27m 04.587s
CPUMARK99 => 351

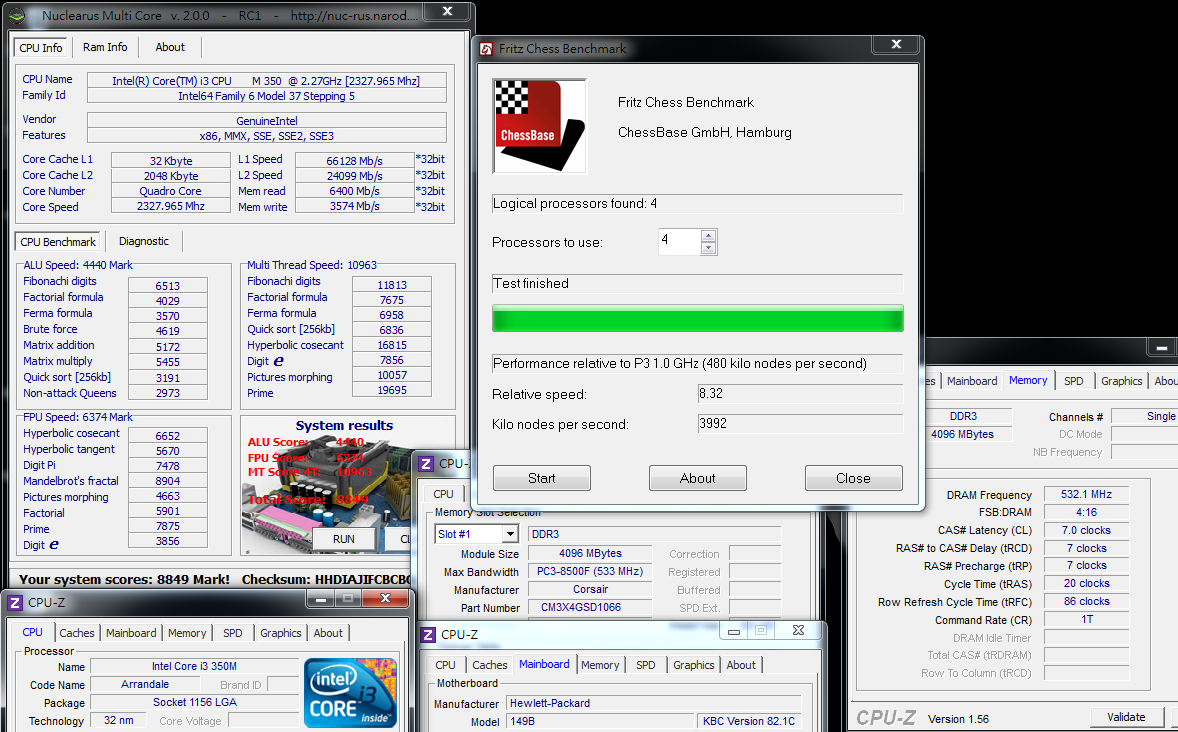

Nuclearus Multi Core => 8849
Fritz Chess Benchmark => 8.32/3992

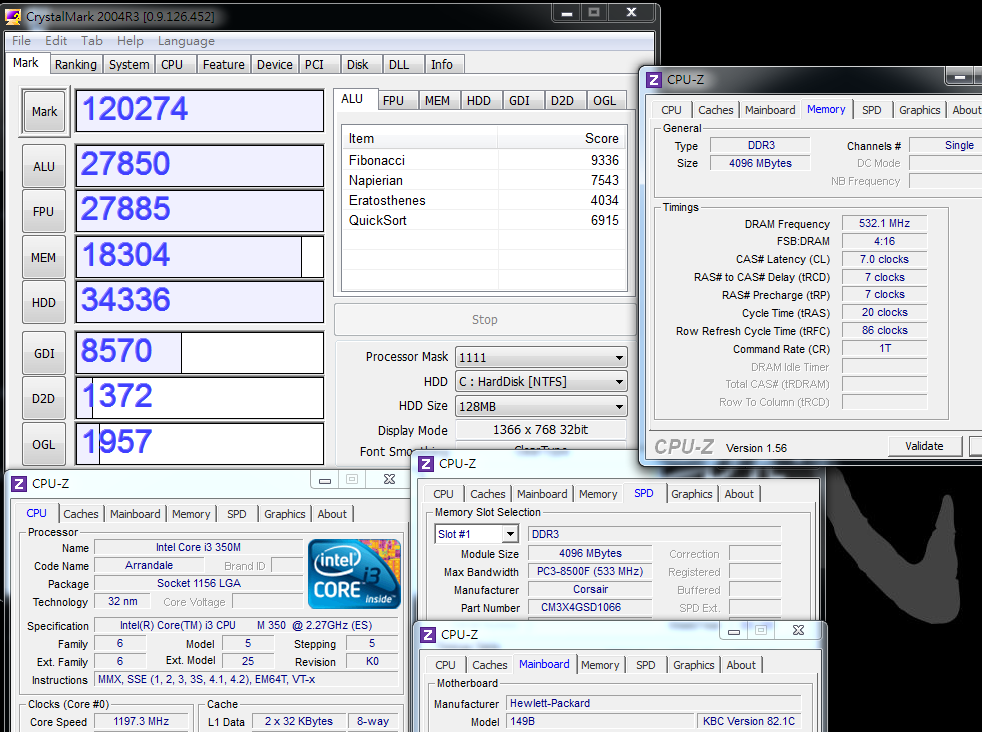

CrystalMark 2004R3 => 120274


CINEBENCH 11.5
OpenGL 1.25fps
CPU (Single Core) 0.76pts
MP Ratio 2.47x

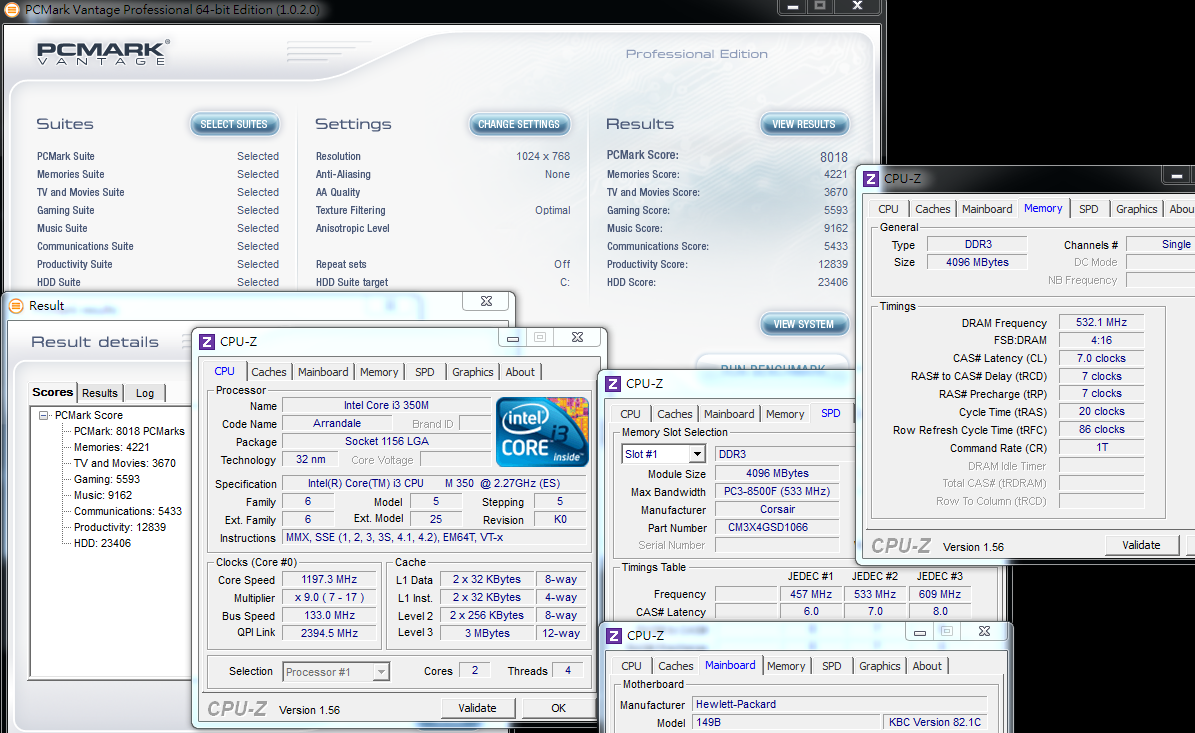

PCMark Vantage => 8018

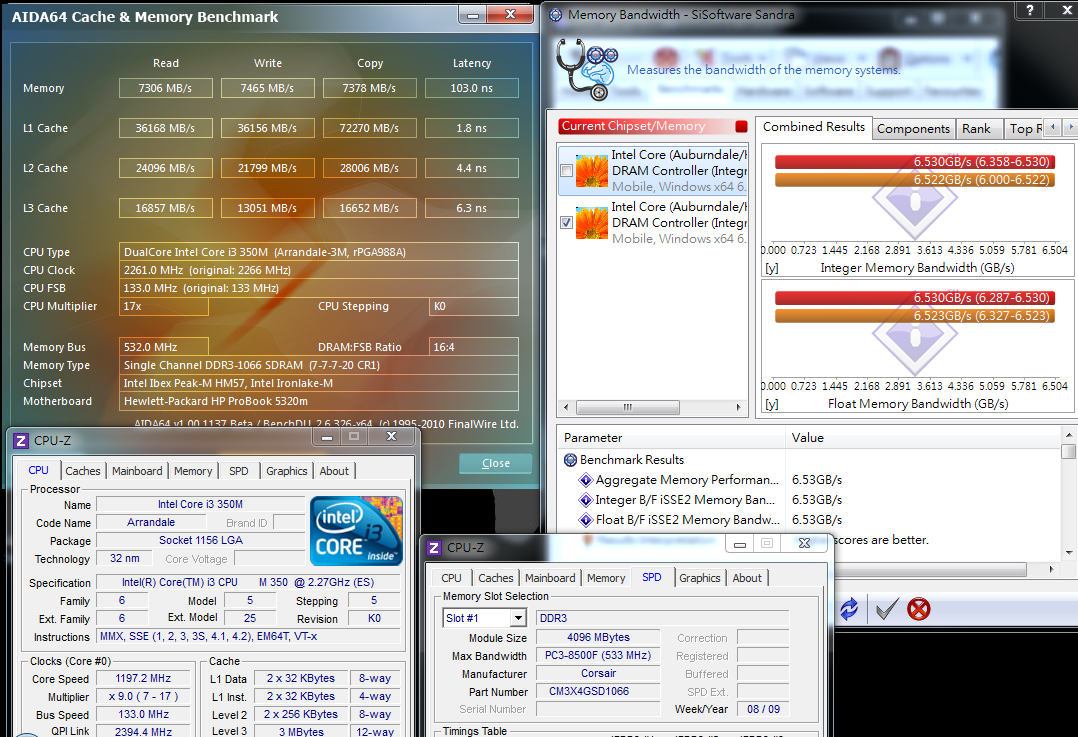

DRAM performance
DDR3 4GB X 1 (1 SODIMM) => 1064.2 CL7 7-7-20 1T
ADIA64 Memory Read - 7306MB/s
Sandra Memory Bandwidth - 6530MB/s

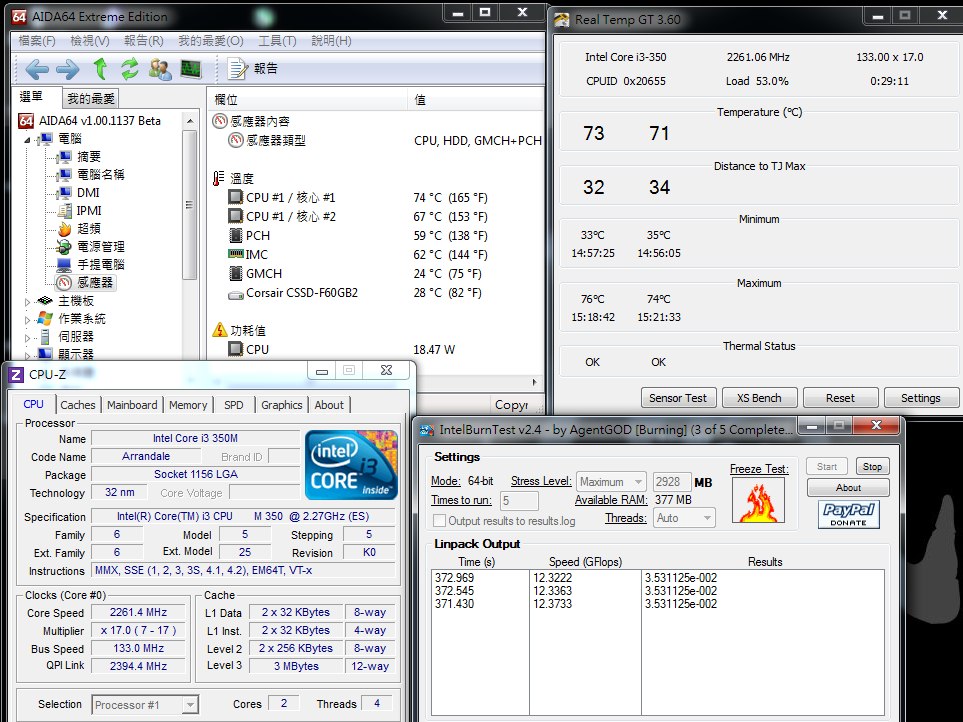

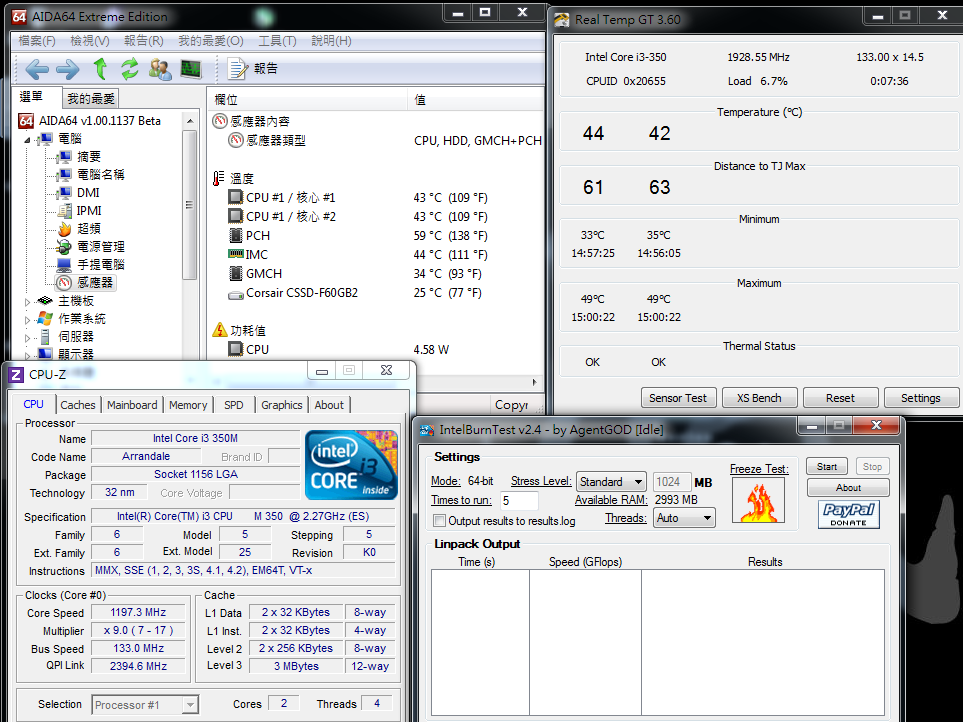

CPU Temperature
Standby - 42~44℃

CPU full speed - 67~74℃

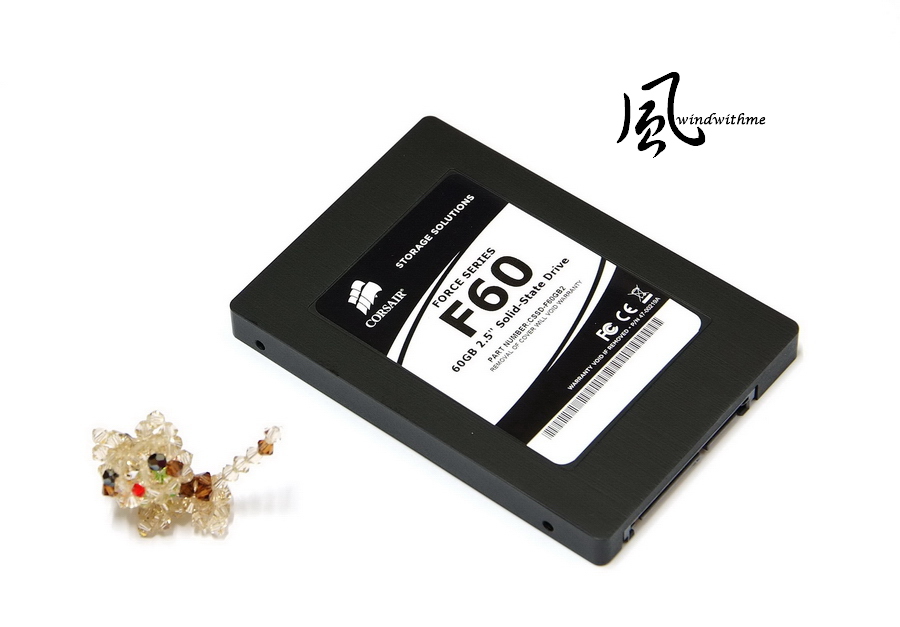

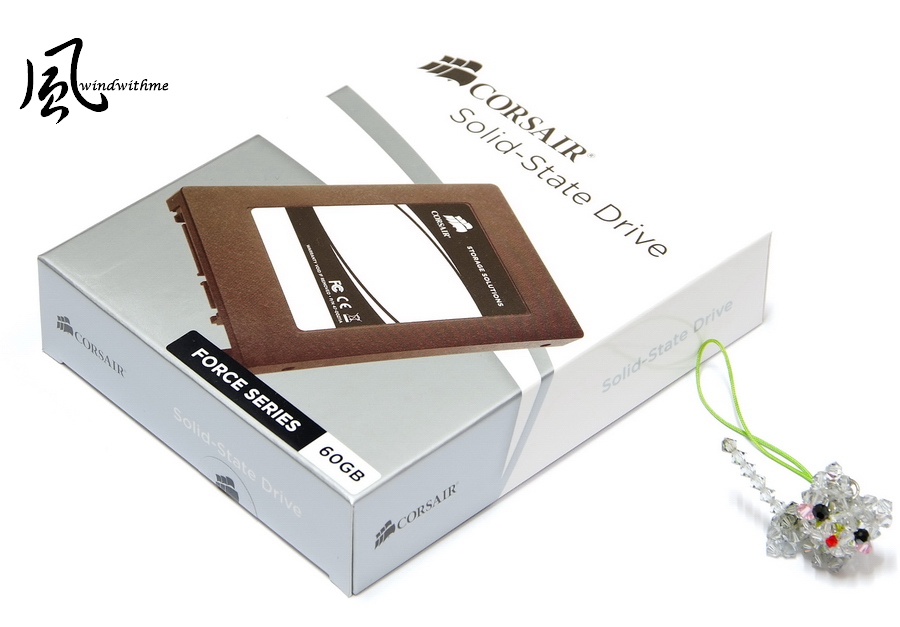

Using high performance MLC SSD-CORSAIR F60 to test


Size is 2.5” and ID is F60. The highest performance is 285/275 MB/s.
Random 4K writing performance can reach 50000 IOPS which improve the 4K writing issue in past SSD.


ATTO DISK Benchmark over 64k benchmark result is max read 249.4 Mb/s and write 232.9 MB/s
CrystalDiskMark 4K QD32 Read - 139.7 MB/s Write - 46.74 MB/s


EVEREST File Benchmark over 1024k benchmark result also above 250 MB/s.

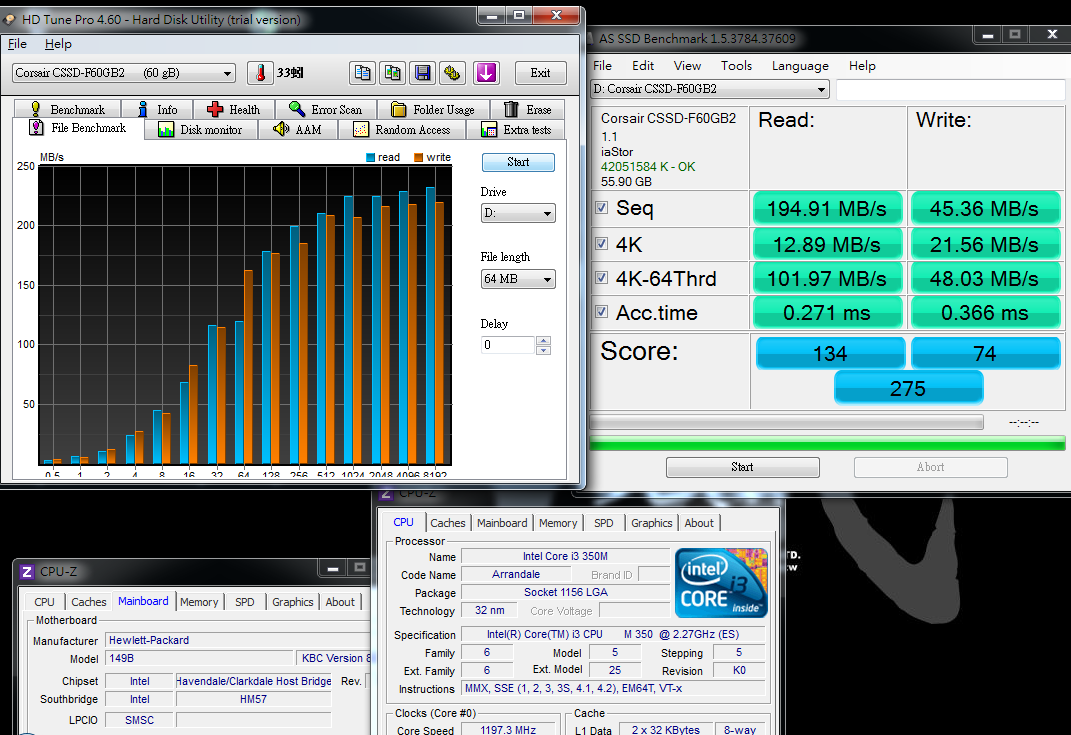

AS SSD Benchmark
Seq Read - 194.91 MB/s Write - 45.36 MB/s
4K-64Thrd Read - 101.97 MB/s Write - 48.73 MB/s


3D is the latest Intel technology that CPU built-in GPU

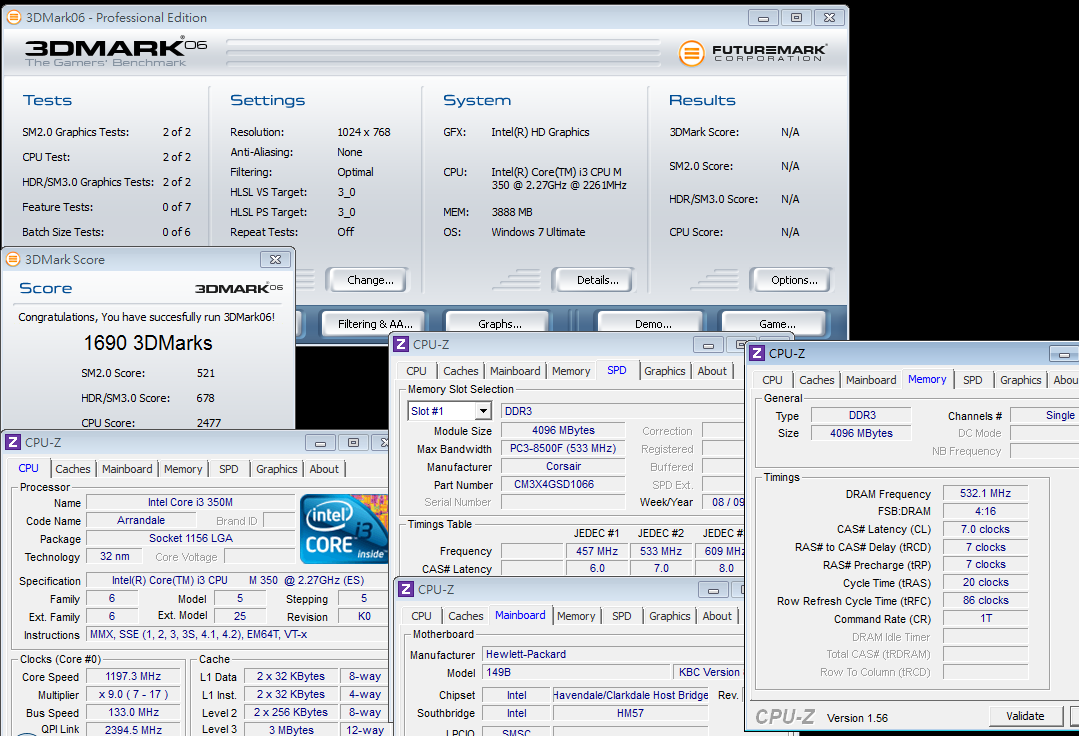

3DMARK2006 - 1690


StreetFighter IV Benchmark
800 X 600 => 22.20FPS


Vedio

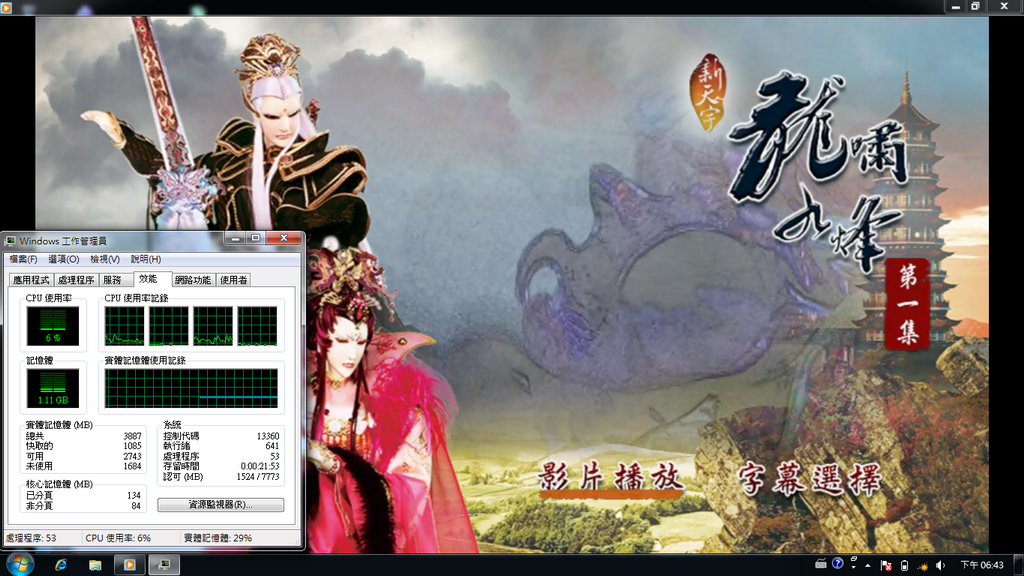

BD Inception/DVD Taiwanese Puppet Show


DVD 720 X 480
CPU => 5~8%


1440 X 1080
CPU => 20~27%

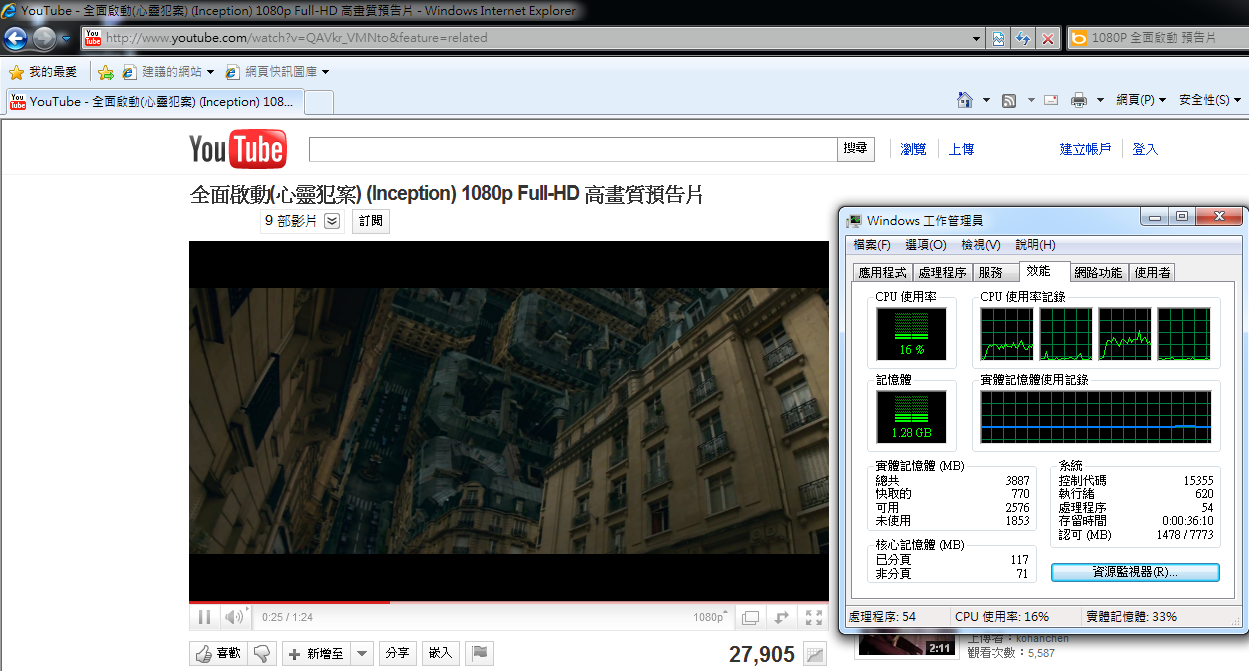

Youtube
Inception 1080P - CPU => 15~19%


Final Fantasy 13 1080P - CPU => 13~20%


The copyright reserved of each vedio belongs to its original company.

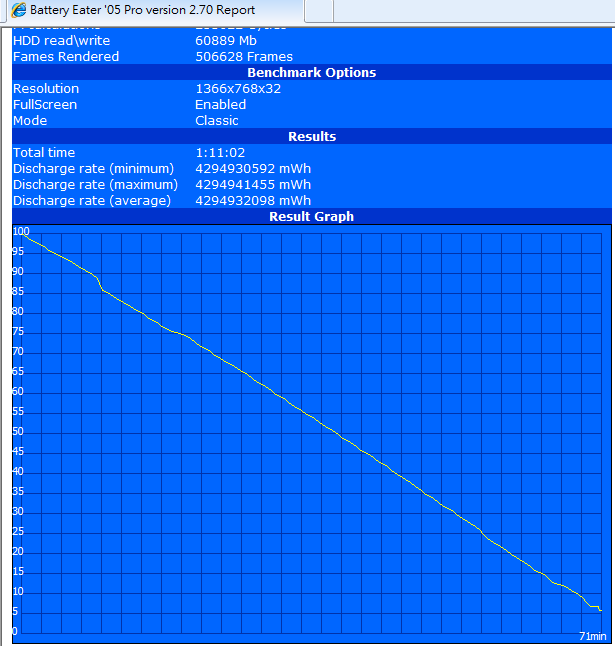

Battery Duration
4Cell battery, Battery Eater Pro (turn on wifi and bluetooth)
Full Speed - 1:11:02


Idle - 4:40:28





HP ProBook 5320m
Performance ★★★★★★★★☆☆
Components ★★★★★★★★★☆
Specification ★★★★★★★★☆☆
Outlook ★★★★★★★★★☆
C/P Value ★★★★★★★★☆☆



This review also post in my blog WIND3C
Welcome 3C lovers to visit and advise.
Thanks :)
