Mike Roll said:
The PS in question is in a very small tower that could accept a
full size ATX board, exactly what I'm looking for.
I think that my MaxPower came in the same case. It's about 2-3"
longer, front to back, than a normal case, so a full size ATX mobo
will fit without overlapping any CD or DVD drives. This is a lot
better than a tall case where those drives mount above the mobo and
may require overly long cables.
Where did you find the spare AC receptacle with a combination
receptacle/filter? Will one from an old AT PS work?
That's exactly where I got mine. It was rated for only 200W but
seemed to be better built than some 350W ATX PSUs, and even after I
removed the receptacle/filter, it still didn't cause any interference
because it had a second EMI filter built into its circuit board.
Any link to how to rewire PS?
I don't know of any, but just wire the receptacle/filter exactly line
the original receptacle, taking care not to mix up the black and white
wires, and if the receptacle/filter has a green-yellow ground wire
attached to it, mount it to the PSU case with a screw (add a connector
if necessary). Also check the resistance of the receptacle/filter
across its AC lines, and if they measure more than about one megaohm,
there's no bleeder resistor inside to drain off the high voltage when
the power is turned off, and you'll have to add your own bleeder to
the terminals. A 250K - 500K resistor rated for at least 1/2W will
work fine. This assumes that there's enough room for the
receptacle/filter because it's possible that MaxPower uses more than
one design. With the one I have the receptacle is near the top of the
rear, well away from the circuit board, and the board is only 5.5"W x
3.0" long. If your MaxPower is different, clearance and shorts could
be a problem. But if the circuit board is much larger it may be
designed so all the EMI filter components mount on it, although they
may have been left out, as was the case with this Deer PSU:

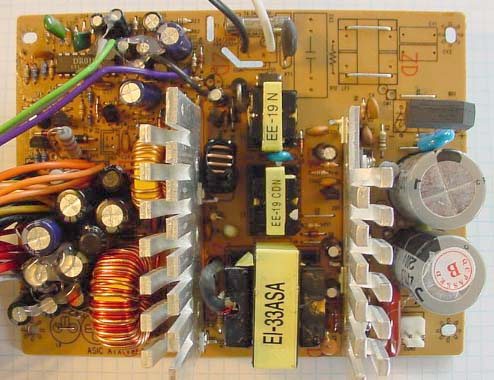

www.webx.dk/oz2cpu/radios/psu-pc400-comp1.jpg (upper right corner --
jumper wires soldered where chokes should have gone, no bleeder
resistor just to the left, no large capacitor across the lines to the
left of it, and no smaller capacitors from each line to ground at the
extreme right). If the filter components are installed, don't bother
adding a receptacle/filter, but if they weren't, try putting them in,
taking care to use an X1 or X2 rated capacitor for the large one on
the left (probably 0.1-0.3uF, 250-275 VAC, not volts DC) and .005uF
(5nF) Y1 or Y2 rated capacitors for the small ones on the right. A
schematic of a typcial ATX PSU at
http://pavouk.cz/hw/atxps.gif may
help (EMI filter in upper left). The chokes can be either two
separate units or a single dual unit (like T5 in the schematic), but
if you use the latter, check its wiring since some are made exactly
wrong for the circuit board and will short across the AC lines rather
than put a coil in series with each AC line. Also make sure that the
choke wiring is well insulated and can't short the two lines together.
